FITTING 10Х17Н13М2T/316Ti

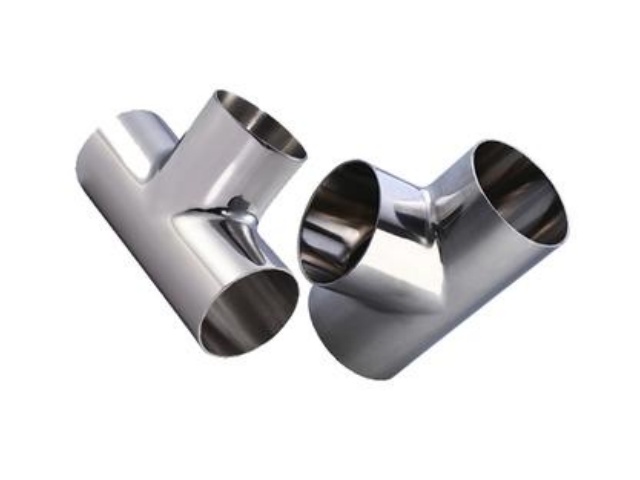

Types: Elbow, Tee, Cross, Reducer, Cap, Nipple, Flange, etc.
Material: 10Х17Н13М2T
Diameter: DN10mm–DN1200mm.
Wall Thickness: 2 mm - 30 mm (SCH5S – XXS).
Operating Temperature: -196°C - +800°C.
Fittings made from 10Х17Н13М2T steel (AISI 316Ti) provide outstanding durability and resistance in demanding environments, offering:
- Corrosion Resistance: Titanium addition enhances the material's resistance to pitting and crevice corrosion, especially in chloride-rich environments.
- High-Temperature Performance: Suitable for use at higher temperatures, these fittings maintain structural integrity up to 800°C, making them ideal for high-heat applications.
- Resistance to Aggressive Environments: Excellent performance in harsh conditions, including chemical processing, marine, and high-temperature industrial environments.
Compliance Standards
Fittings are manufactured and supplied according to the following standards:
- ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
- DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN: EN10253-1, EN10253-2
- GOST: GOST 17375-80, GOST 30753-80, GOST 17376-80, GOST 17378-80, GOST 17379-80
