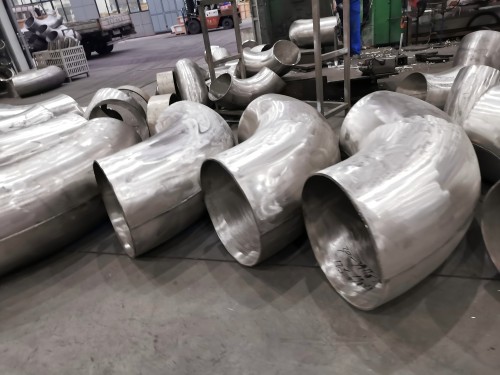

ELBOW TU 102-488-95
Angles: θ = 45°, θ = 60°, θ = 90°, θ = 180°
Materials: Stainless Steel, Alloy Steel, Carbon Steel
Diameter: DN220mm - DN1420mm
Wall Thickness: 2 mm - 40 mm (SCH5S – XXS)
Radius: R = 1.5D to 3D. Radius calculated based on design and size specifications.
Pressure: Up to 16 MPa
Temperature:-70°C - +600°C
Type: Seamless welded
Working Medium: Water, steam, oil, gas, etc.
Manufacturing Materials
Stainless Steel: 304, 304L, 316, 316L, 321, 347, 08Х18Н10, 12Х18Н10Т, 20Х23Н13, 10Х17Н13М2Т, etc.
Carbon Steel: ASTM A234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70
Low-Temperature Carbon Steel: ASTM A420 WPL3, WPL6
Alloy Steel: ASTM A234 Gr. WP1, WP5, WP9, WP11, WP91
Duplex Steel: ASTM A815 UNS S31803, S32205
Nickel Alloys: ASTM/ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20/20 CB 3), UNS 8825 (Incoloy 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276)
Standards and Compliance
Manufactured in compliance with the following standards:
- ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
- DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN: EN10253-1, EN10253-2
- GOST: GOST 17375-80, GOST 30753-80, GOST 17376-80, GOST 17378-80, GOST 17379-80
