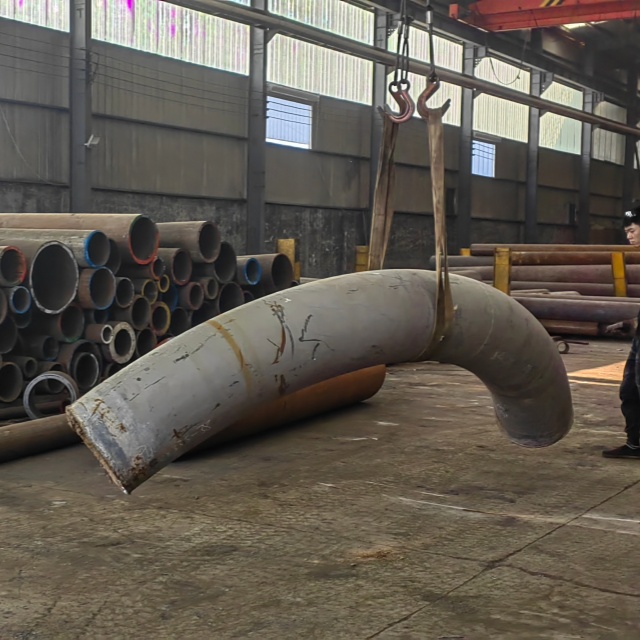

BEND
BEND
Material : Stainless steel , Alloy Steel , Carbon Steel
Production Range : 1/2''-72'' (DN10~DN1800)
Wall Thickness : Sch5s- xxs
Standard: ASTM, DIN, EN, GOST ,JIS ,GB ,UNS, N04400
BEND
Stainless Steel Elbow , Alloy Steel Elbow , Carbon Steel Elbow
Butt-welded Pipe Elbow Production Range
Outside Diameter: Seamless Elbow ( 1/2″~24″) , ERW / Welded /Fabricated Elbow (1/2″~72″)
Wall Thickness: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS
Bending Radius: R=2D– 10D, 15D, 20D , Customization
Product’s Angle: As per standard , Customization
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper Nickle .
Pipe Elbow Material Grades
Stainless Steel Elbow; ASTMA403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbow: ASTMA 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low-Temperature Carbon Steel Elbow: ASTM A420 WPL3, A420 WPL6
Alloy Steel Elbow: ASTM/ ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Elbow: ASTMA 815, ASME SA 815 UNS NO S31803, S32205.
Nickel Alloy Elbow: ASTM/ ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOYC 276 )
Features
1) Durable
2) High Tensile Strength
3) Weather Resistant
4) Anti Corrosive
5) Resilient
6) Resistance to acid and alkaline solutions
7) Rugged construction
ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
GOST 30753
ASTM A403 – ASME SA403– Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9– Factory-Made Wrought Fittings Butt-weld
ASME B16.25– Butt-welding Ends
ASME B16.28 – Wrought Steel Short Radius Elbows and Butt-welding Returns
MSSSP-43– Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Wuxi Well Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Wuxi Well Standard
2) Customization
