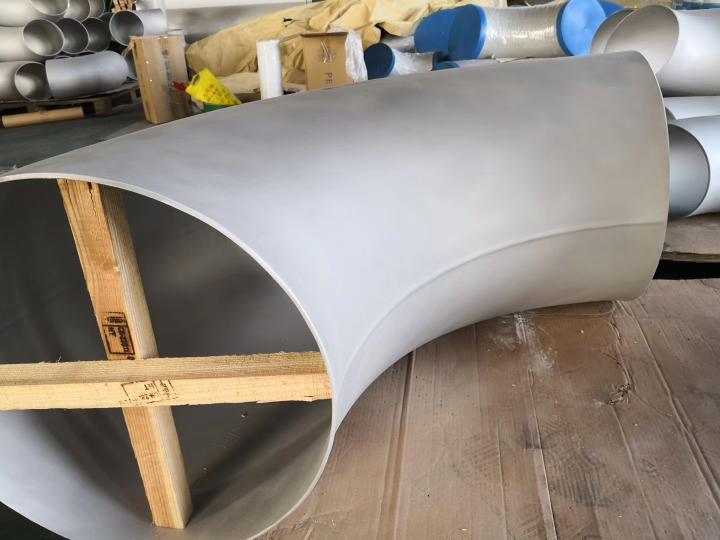

ELBOW AISI 304L
Angles: θ = 45°, θ = 60°, θ = 90°, θ = 180°
Material: Stainless Steel
Steel Grade: AISI 304L
Diameter:1/2" - 72" (DN10mm – DN1800mm).
Wall Thickness: 3 mm - 40 mm (SCH5S – XXS).
Radius: R = 1D – 10D; R = 15D, 20D; R = 1.5D.
Pressure: Up to 16 MPa.
Temperature: -70°C - +450°C.
Type: Seamless welded.
Working Media: Water, steam, oil, gas, etc.
The AISI 304L Elbow is an excellent choice for proper pipeline operation. It is a certified product made according to industry standards and produced from 304L stainless steel. This material is specifically known for its low carbon content, which improves its weldability and resistance to intergranular corrosion.
- Corrosion Resistance: High resistance to corrosion, making it suitable for harsh environments.
- Temperature Range: It can be used in a wide range of temperatures, from -70°C to +450°C.
- Durability: The product is designed for long-term use with excellent mechanical properties.
- Applications: Widely used in various industries, where corrosion resistance, strength, and long service life are essential.
Manufacturing Standards
The elbows are manufactured and supplied according to the following standards:
- ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
- DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN: EN10253-1, EN10253-2
- ГОСТ: ГОСТ 17375-80, ГОСТ 30753-80, ГОСТ 17376-80, ГОСТ 17378-80, ГОСТ 17379-80, ГОСТ 17375-80
