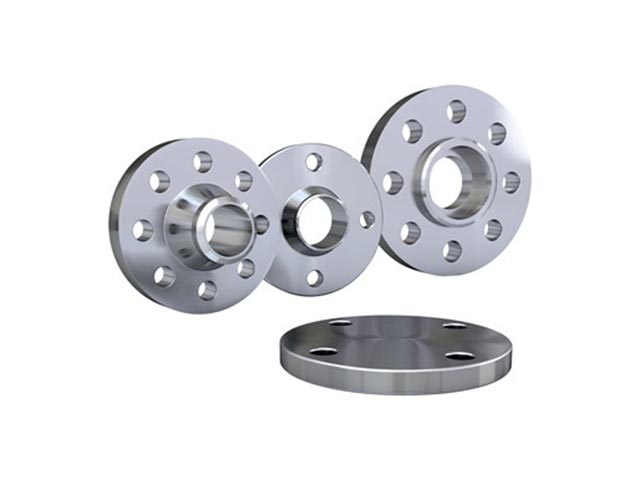

THREADED FLANGE
Material : Stainless steel , Alloy Steel , Carbon Steel
Production Range : 1/2''-48'' (DN10~DN1200)
Pressure: 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Standard: ASTM, DIN, EN, GOST ,JIS ,GB
This flange is referred to as either threaded or screwed. Threaded flanges are used to connect other threaded components in low pressure, non-critical applications. No welding is required. The various types of threaded flanges are as follows:
1.Plain Threaded Flanges
2.Female Threaded Flanges
3.Male Threaded Flanges
Size: 1/2″ (15 NB)to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A& B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150,Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10,PN16, PN25,PN40, PN64 etc.
Carbon Steel Threaded Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48,F50, F52,F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/SpadeFlange), Steel RST37.2, C22.8
Stainless Steel Threaded Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321,F904L
Alloy Steel Threaded Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Threaded Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flat Face(FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
|
ANSI B 16.5 Class 150 |
ANSI B 16.5 Class 300 |
ANSI B 16.5 Class 600 |
|
ANSI B 16.5 Class 900 |
ANSI B 16.5 Class 1500 |
ANSI B 16.5 Class 2500 |
Stainless Steel
ASTM A 182, A 240
Grade
F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel
ASTM A 105, ASTM A 181
Alloy Steel
ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys
Copper, Brass & Gunmetal
Wuxi Well Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Wuxi Well Standard
2) Customization
