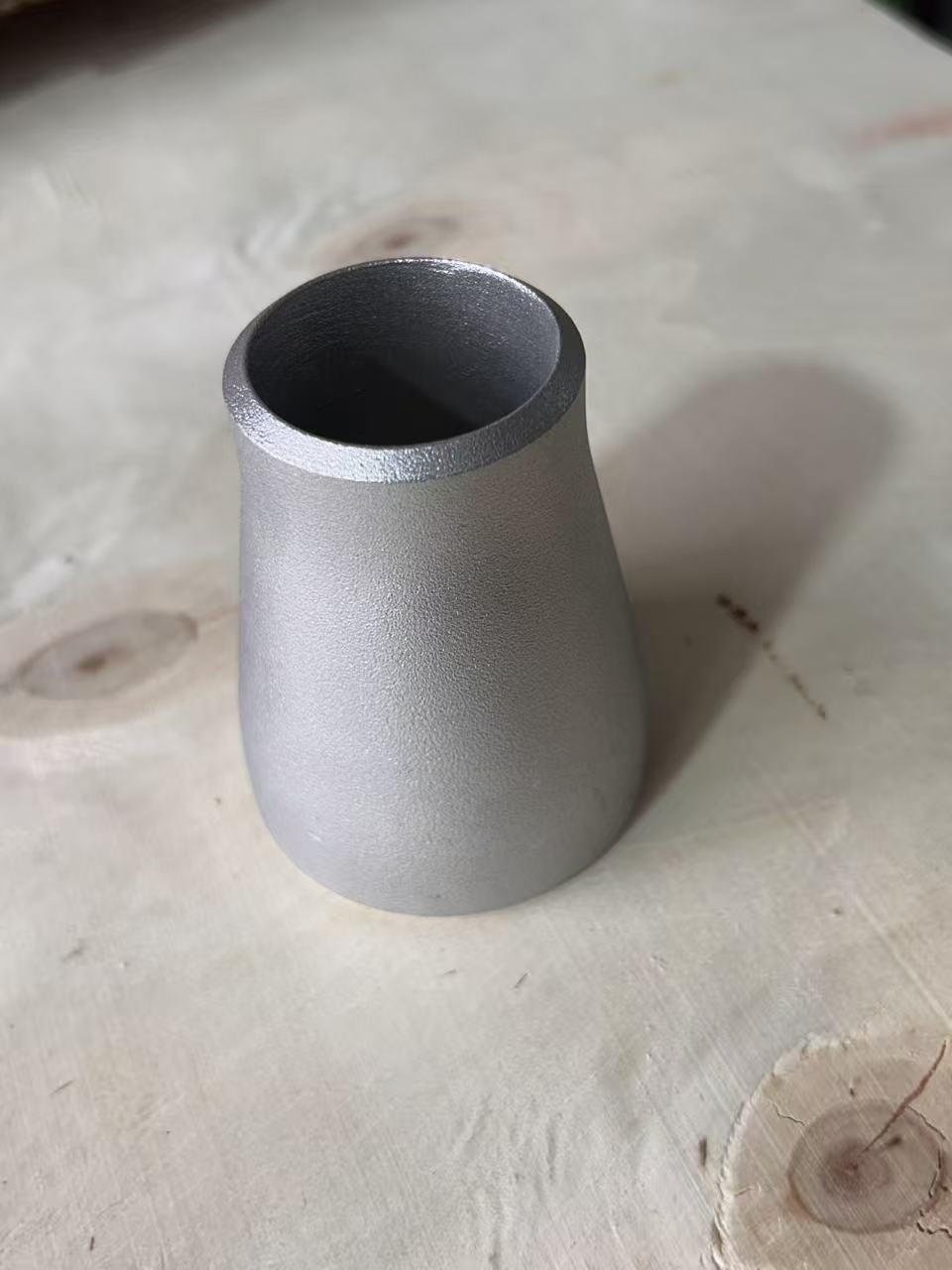

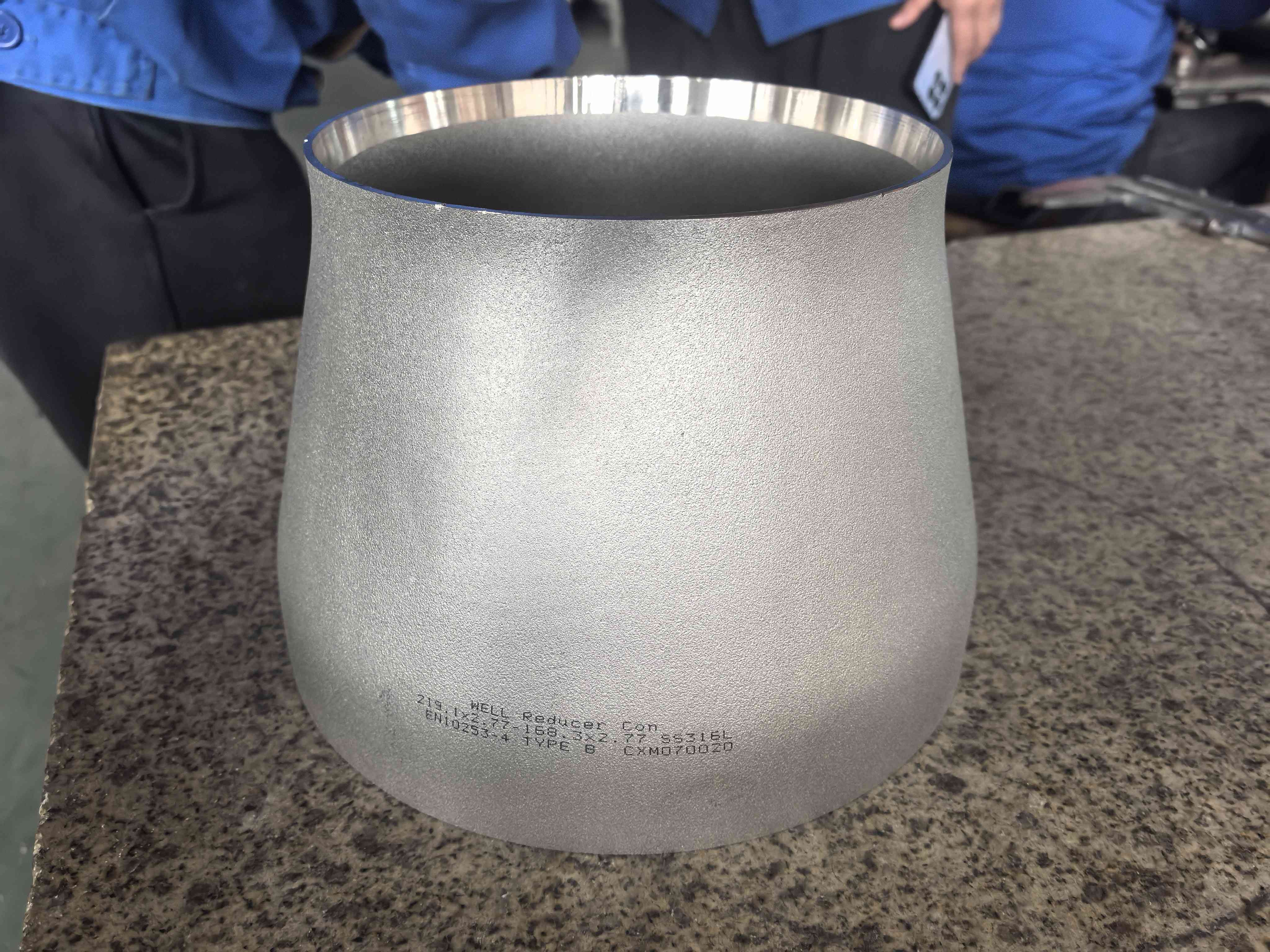

CONCENTRIC REDUCER

CONCENTRIC REDUCER
Material : Stainless steel , Alloy Steel , Carbon Steel ,Nickel Alloy,Copper Alloy,Titanium Alloy
Production Range : 1/2''-72'' (DN10~DN1800)
Wall Thickness : SCH5S- XXS
Standard: ASME B16.9, ASMEB16.28,DIN2616,DIN2037, EN10253-2, EN10253-4, ГОСТ 17375-80
JIS2312,JIS2313,GB12459 ,GB13401, SH3408,SH3409,MSS-SP-75,MSS-SP-43


Butt-weld Pipe Reducer Production Range – Concentric Reducer

Outside Diameter: Seamless Pipe Reducer ( 1/2″~24″), ERW / Welded /Fabricated Pipe Reducer (1/2″~48″)
Type: Concentric Reducer
WallThickness: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS
ValueAdded Services: HotDipped Galvanizing, Epoxy & FBE Coating, Electronic  Polish, Sand Blasting,Threading, Soldering
ProductionGrades: StainlessSteel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper Nickle

Manufacturing Standards
ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTMA403– ASME SA403 – Standard Specification for Wrought Austenitic Stainless SteelPiping Fittings
ASMEB16.9– Factory-Made Wrought Fittings Butt-welding
ASMEB16.25– Butt-welding Ends ASME B16.28 – ‘Wrought Steel Short Radius Elbows and Butt-weldingReturns
MSSSP-43– ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, CorrosionResistant Applications

ГОСТ 17375-80,ГОСТ 30753-80,  ГОСТ 17376-80, ГОСТ 17378-80, ГОСТ 17379-80, ГОСТ 17375-80,ТУ 1468-002-31049454-04


Pipe Reducer Material Grades
StainlessSteel Reducer;ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
CarbonSteel Reducer:ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
LowTemperature Carbon Steel Reducer: ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Reducer : ASTM A815, ASME SA 815 UNS NO S31803, S32205.
NickelAlloy Reducer:ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400(MONEL 400 ), UNS8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )



Application Areas
Oil and gas industry
Petrochemical industry
Power stations
Shipbuilding industry

      Wuxi Well Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Wuxi Well Standard
2) Customization
