PLATE
Stainless steel plate
Material : Stainless steel,Alloy Steel fitting,Nickel alloy ,Titanium,Hastelloy
SS 304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 409, 410, 420, 430, 446, 202 Etc
Wall Thickness :Cold rolled: 0.3mm-3.0mm Hot rolled: 3.0mm-200mm
Width:1000MM-3500MM
Length:1000mm-6000mm
Standard: AISI, ASTM, DIN, GB, JIS, EN
Wall Thickness : 0.3MM-200MM
Standard: AISI, ASTM, DIN, GB, JIS, EN
Grade: 201,304,304L,304H,321,321H,316,316L,316H,316Ti,317,317L,347/347H.310S,309S,904L,2205,2507,S31803,S32750,S32760,1.4410,1.4529,1.4529/N08367/N08926,S31608/31609/316/316H,S32760/S32750/1.4410,1.4529/N08367/N08926,N08800/800/S33400/840,1.4539/N08904/724L/AL-6XN/N06625/625/C276/1.4435/RA330/N08330/630/17-4,N06600/TA2/TA1/TC4,S31254/1.4828/309Si2,314/310Si2/S30815/253MA
Brand Name: POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, OutokumpuModel Number: stainless steel plate&sheet
Technique: Cold Rolled Hot Rolled
Width: 500mm-2000mm
Length: 1000mm-6000mm
surface finishing: 2B,NO.1,BA,HL,4k,8k,polished,etc
Tolerance: thickness ±0.02MM
Quality: prime quality

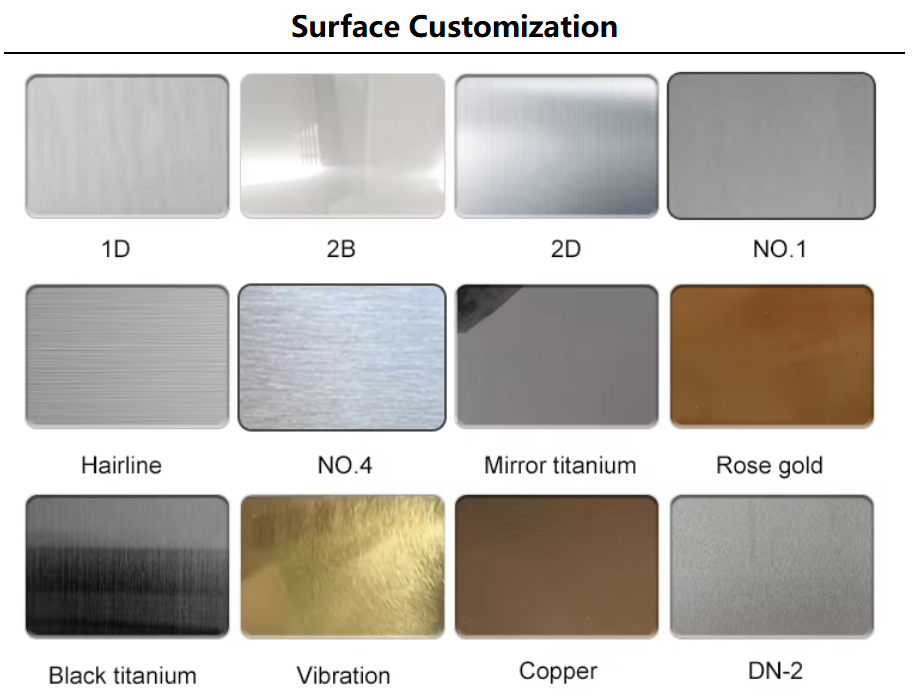

Surface Finish
Definition
Application
2B
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.
Medical equipment, Food industry, Construction material, Kitchen utensils.
BA
Those processed with bright heat treatment after cold rolling.
Kitchen utensils, Electric equipment, Building construction.
NO.3
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.
Kitchen utensils, Building construction.
NO.4
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.
Kitchen utensils, Building construction, Medical equipment.
HL
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.
Building construction
NO.1
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.
Chemical tank, pipe.
Standard Specification Of ASTM A240 Type 304 Plate
Specifications
ASTM A240 / ASME SA240
Thickness
0.3mm-200mm
Width
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
Finish
Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form
Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
blast, Brush, etching, etc
Specifications
|
CHEMICAL COMPOSITION |
|
|
Element |
Percentage |
|
C |
0.08 max |
|
Fe |
66.34 - 74 |
|
Mn |
2 max |
|
Ni |
8 - 10.5 |
|
P |
0.045 max |
|
S |
0.03 max |
|
Si |
1 max |
|
Cr |
20 |
|
MECHANICAL INFORMATION |
||
|
|
Imperial |
Metric |
|
Density |
0.289 lb/in3 |
8.0 g/cc |
|
Ultimate Tensile Strength |
73,200psi |
310 MPa |
|
Yield Tensile Strength |
31,200psi |
276 MPa |
|
Melting Point |
2,550 - 2,651°F |
1,400 - 1,455°C |
|
Temper |
Annealed |
|
Hardness Rockwell |
B70 |
|
Hardness Brinell |
123 |
|
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. |
|
