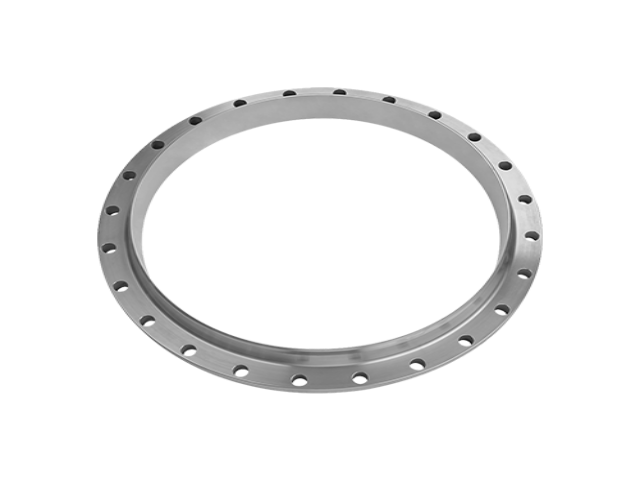

FLANGES ASME B16.47
Material: Carbon Steel, Alloy Steel, Stainless Steel
Diameter: 1/2'' - 60'' (DN10mm to DN1500mm)
Pressure Rating: Class 150 to Class 2500
Temperature Range: -50°C - +1000°C
Working Environment: Water, steam, gas, oil, chemicals, etc.
Standard: ASME B16.47
ASME B16.47 flanges are large diameter flanges designed to meet the ASME B16.47 standard, which governs the dimensions, materials, pressure ratings, and types of flanges used in piping systems. This standard is essential for applications that require high-pressure, large-diameter flanged connections, typically found in industries such as oil and gas, petrochemical, and power generation. These flanges are capable of withstanding extreme pressures and temperatures, making them suitable for heavy-duty, industrial pipeline systems.
Steel Grades:
- Carbon Steel: 20, 09Г2С, A105, A181 – Gr.60/Gr.70, A350 Gr. LF1/LF2, A694 Gr. F42/F60/F70, and others- Alloy Steel: 13ХФА, 15Х5М, 10Х17Н13М2Т, F9, F11 CL1/CL2, F22, F91, F5, F7, A182 – Gr.F1, F316, F316L, F316Ti, and others
- Stainless Steel: 12Х18Н10Т, 08Х18Н10Т, A182 – F304, F304L, F316, F316L, F321, F347, and others
Flange Types:
- Flat Flange
- Neck Flange
- Weld Neck Flange
- Flange with Weld Ring
- Blind Flange
