BUTTERFLY VALVE
Size: DN40-DN1200
Pressure: PN6-PN16
Design And Manufacturing: GB/T 12238 (midline)
Flange Size: JB/T 79
Manufacturing Standards: GB, JB, HG, JIS, ASME, DIN, API
Structural Length: GB/T 12221 (Short Series)

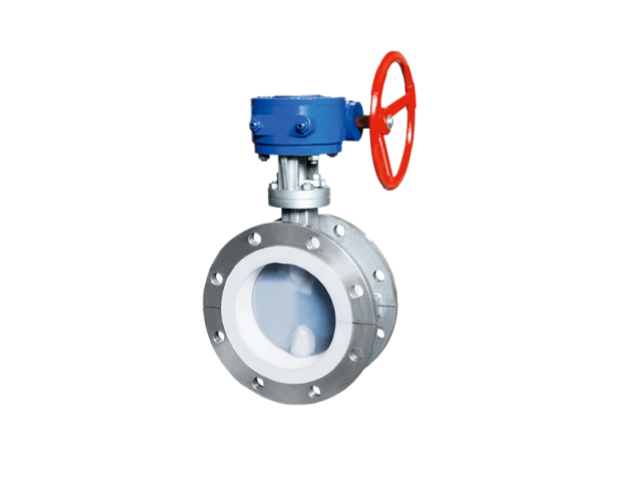

The Flange Connected Fluorine Lined Butterfly Valve is specially designed for handling highly corrosive and aggressive media in chemical processing systems.
The valve body and disc are lined with fluoropolymer materials such as PTFE, FEP, or PFA, providing excellent resistance to acids, alkalis, solvents, and other corrosive fluids.
The flanged connection ensures secure installation and reliable sealing performance in demanding industrial applications.
